Nav3DObstacleLoader
To use the possibility of pre-baking obstacles on the scene in editor mode and then loading them from a binary file, the Nav3DObstacleLoader component is used. You can create it on the scene using the following top menu button:
The following game object will appear on the scene:
For all obstacles in the scene that you want to bake, select the “Load from binary” processing mode.

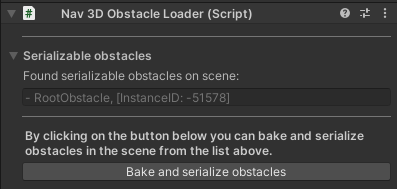

Next, in the Nav3DObstacleLoader component inspector, you can see a list of all game objects with the Nav3DObstacle component that are subject to baking.
Click the “Bake and serialize obstacles” button and select a folder in the project to save a binary file with baked data about obstacles on the scene.

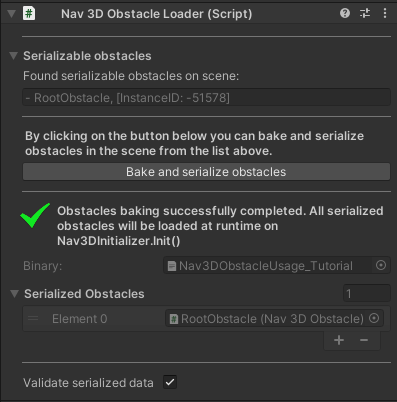

After successful baking, the Nav3DObstacleLoader component inspector will look like this:
The inspector of successfully serialized Nav3DObstacle will look like this:
Now in game mode, when Nav3D is initialized, the navigation graphs of all baked obstacles on the scene will be loaded from a binary file.
*There is an important note regarding game objects for which static batching is enabled. When loading the navigation graph from a binary file, Nav3DObstacleLoader
tries to check the correspondence of the data in the binary file and the current parameters of the obstacle on the scene (the structure of the transform hierarchy, the transform component fields, the presence of a valid mesh in the MeshFilter, and so on). This check is needed to throw an exception and thereby notify the user that the baked navigation file has become obsolete, since the obstacle was changed after saving the binary file. If static batching is enabled for a group of obstacles, validation will never be successful because the obstacle mesh cannot be accessed. So we added the option to disable validation. To do this, uncheck “Validate serialized data” in the Nav3DObstacleLoader
inspector.
